A classification technique which computes the probability or likelihood that the data belongs to a class of interest. $$\log\left(\frac{p}{1-p}\right) = \beta_0 + \beta_1 x_1 + \cdots + \beta_n x_n$$
Goal : Maximize likelihood
Optimization Method : Gradient Descent
Generally fits an ‘S’ curve (‘S’ shaped logistic function) for the data to belong to separate classes.

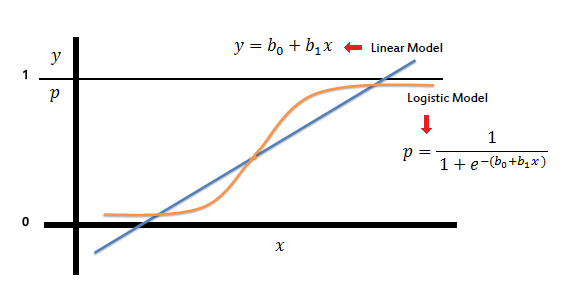

Binary Classification#
Sigmoid transforms the linear combination of inputs into probability. $$\sigma(z) = \frac{1}{1+e^{-z}}$$
- \(z = \beta_0 + \beta_1 x_1 + \cdots + \beta_n x_n\)
The curve which gives the maximum likelihood is selected as the end result.
Multinomial Logistic Regression#
One-vs-Rest (OvR) Classification :
- For \(K\) classes, train \(K\) separate binary classifiers (one class vs the rest).
- For a new observation, output \(K\) probabilities and select the class with the highest probability.
- Different binary classifiers may produce overlapping decision regions which may lead to ambiguous classification, especially when classes are imbalanced.
Softmax Logistic Function :
Softmax ensures the predicted probabilities of all classes sum to 1. $$P(y=k|x)=\frac{e^{x^T\beta_{k}}}{\sum_{j=1}^Ke^{x^T\beta_{j}}}$$
- \(x\) = feature vector
- \(K\) = number of classes
- \(\beta_{k}\) = parameter vector for class \(k\)
- Provides a coherent probability model.
- Model coefficients can be interpreted as the change in log-odds of being in a given class.
Maximum Likelihood Estimation#
Binary Classification : $$L(\beta) = \prod_{i=1}^{N} p_i^{y_i} (1-p_i)^{1-y_i}$$
- \(p_i\) = predicted probability for observation (\phi)
- \(y_i\) = actual label (0 or 1)
Log Transformation (Log-Likelihood) :
- This results in underflow for large datasets since all values are between 0 and 1.
- We apply log transformation to change it into a summation. $$\ell(\beta)=\sum_{i=1}^{N}(y_i \log(p_i) + (1-y_i) \log(1-p_i))$$
Multi-Classification using Softmax : $$\ell({\beta_{k}}) = \sum_{i=1}^{N} \sum_{k=1}^{K} y_{ik} \log\left( \frac{e^{x_i^\top \beta_{k}}}{\sum_{j=1}^{K} e^{x_i^\top \beta_j}} \right)$$
Assumptions#
- An S shaped curve is assumed to fit the data. The independent variable should have strong correlation with the likelihood of the class.

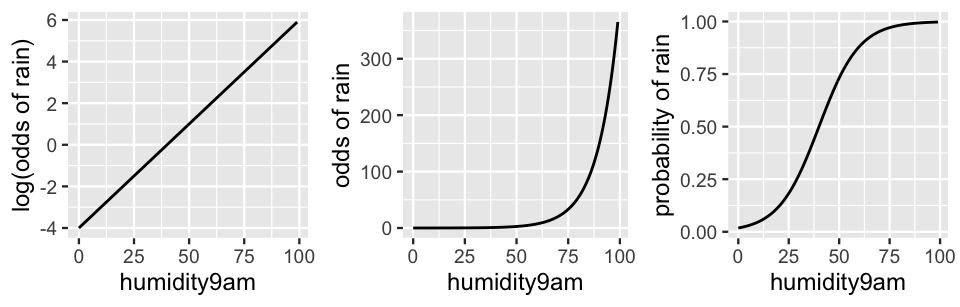

- Linearity in the Logit : The log-odds (logits) of the outcome are assumed to be a linear combination of the independent variables.
$$\log\left( \frac{p}{1-p} \right)=\beta_{0}+\beta_{1}x_{1}+\dots+\beta_{n}x_{n}$$
- The coefficients are in the log-odds scale. All Linear Regression tests can be done on this line.
- Independence : Observations are assumed to be independent of each other.
- No or Little Multicollinearity : The independent variables should not be highly correlated with each other.
- A sufficiently large sample is preferred to obtain reliable estimates.
Limitations#
- Linear Decision Boundary in Logit Space : Assuming a linear relationship between the predictors and the log-odds of the outcome, might not capture more complex, non-linear relationships.
- Sensitivity to Outliers : Extreme values can disproportionately affect the model.
- Multicollinearity : High correlation among independent variables can destabilize coefficient estimates.
- Feature transformations : For data that is not linearly separable (in the logit domain), performance may suffer unless features are transformed or interaction terms are added.
Diagnostic Decision Table#
| Observation | Implication | Action |
|---|---|---|
| Poor Overall Model Fit : High deviance, low pseudo R-squared, or significant lack-of-fit (e.g., failing the Hosmer-Lemeshow test). | The model may be mis-specified, missing important predictors, or not capturing the true relationship between variables. | Reassess model specification: consider adding relevant predictors, interaction terms, or non-linear transformations. |
| Non-significant Coefficients : Predictors with high p-values or wide confidence intervals. | These predictors may not contribute meaningfully to predicting the outcome, possibly diluting the model’s effectiveness. | Remove or re-specify insignificant variables, and ensure that only meaningful predictors remain in the model. |
| Low Predictive Performance : Low classification accuracy, poor ROC-AUC, or imbalanced confusion matrix (e.g., high false positives/negatives). | The model might be underfitting, failing to capture important data patterns, or struggling with class imbalance. | Perform feature engineering, consider re-balancing the dataset, explore alternative model specifications, or try regularization techniques. |
| High Multicollinearity : Indicators such as high Variance Inflation Factor (VIF) values or inflated standard errors. | Predictor variables are highly correlated, leading to unstable coefficient estimates and difficulty in interpreting their individual effects. | Remove, combine, or transform correlated predictors, or apply regularization (L1/L2) to mitigate multicollinearity issues. |
| Influential Observations : A few data points exhibit high Cook’s distance or leverage values. | These observations may disproportionately affect model estimates, potentially skewing results and interpretations. | Investigate and validate these outliers. Consider robust regression techniques or, if justified, remove problematic observations after careful analysis. |
| Patterned Residuals : Residual plots show systematic patterns or non-random distribution. | This suggests that the model is missing key relationships (e.g., interactions or non-linear effects), indicating mis-specification. | Consider adding interaction terms, polynomial terms, or applying variable transformations to better capture the underlying data structure. |
| Poor Calibration in Multi-Class Models (OvR approach) : Inconsistent or poorly calibrated predicted probabilities across classes. | The individual binary classifiers may not provide directly comparable probabilities, potentially leading to ambiguous class assignments. | For multi-class problems, consider switching to multinomial (softmax) logistic regression, applying probability calibration techniques, or using methods to better balance class predictions. |
Steps#
Goal : Maximize likelihood
Model : \(\log\left(\frac{p}{1-p}\right) = \beta_0 + \beta_1 x_1 + \cdots + \beta_n x_n\)
- Compute the likelihood for each observation.
- Apply the log transformation to obtain the log-likelihood.
- Optimize the parameters using Gradient Descent.
- Calculate evaluation metrics and diagnose.
- Use Wald’s Test to determine whether a feature is useful in computing the prediction.
- Validate model assumptions such as linearity and independence.
